Specifications

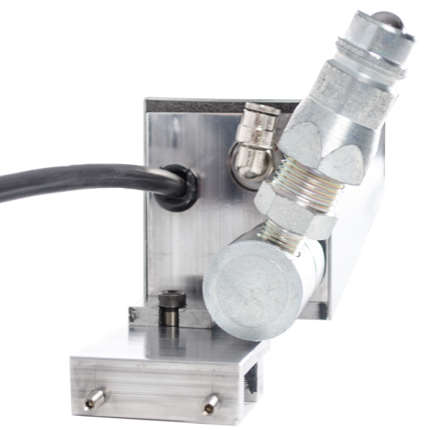

- Stainless steel ball valve rated at 6000 psi
- Failsafe spring return cylinder and solenoid with air filter

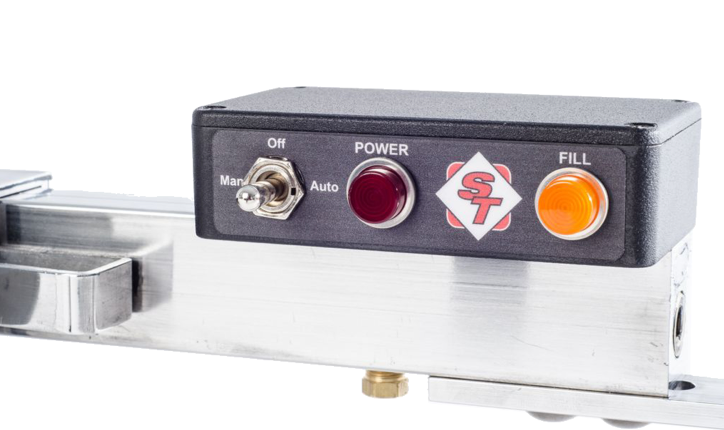

- On/off/manual fill touch pad with indicator lights
- Isolated electronics

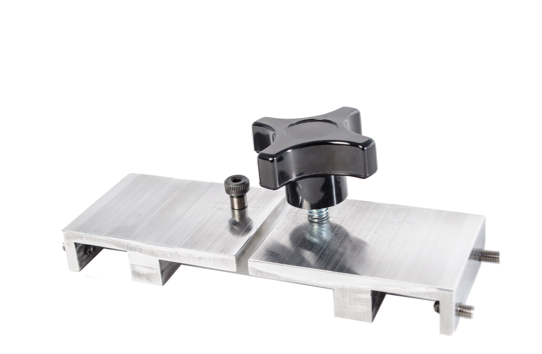

- Aluminum extruded manifold and cheekplate brackets
- No scheduled maintenance required
- Slim design for easy fountain access
- Unique auto shut-off when sensor is tilted

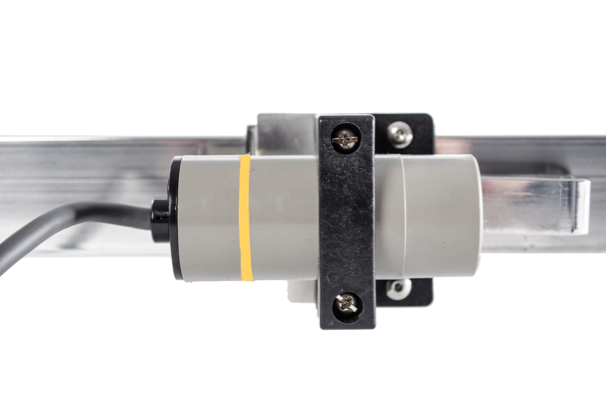

- Sensor controls ink height to within ± .125”
Technical Features
- Power Supply 12 VDC
- ½ Amp fuse
- Power Consumption 250 mA
- Air Requirements 60 – 120 psi
- Air Consumption .002 scfm
- Ink 3000 psi ½” NPT Ink Hose
- Sensor Capacitance
- Options Ink Filters, Shut-off valves
